Can be installed in the body after it's been routed by you or these can be installed in your rear cover plates (if there's room!), which I can do here for you. Please click here for details.
$12.00 Each HWbc-1
A few examples of the box mounted into Covers:
A few important dimensions you might like:L= 2-3/4" X W= 1-9/64ths" Depth is as shown to the right where it's 1-5/16ths from under the mounting lip.

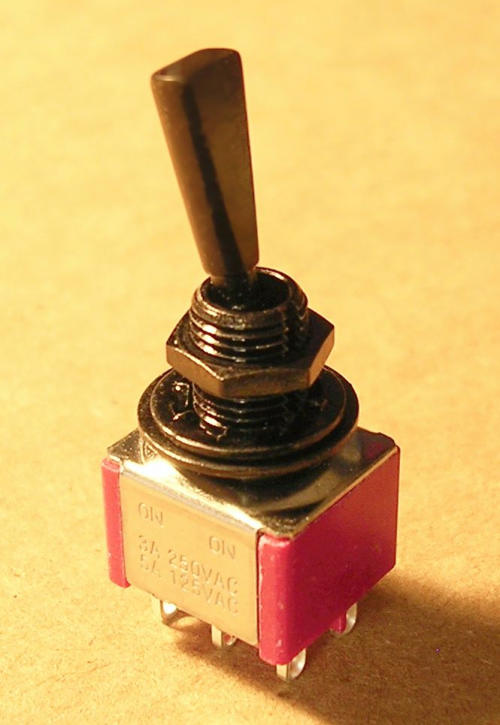

Original "Paddle" style pickup and boost switchesThese are used as the 2 way pickup switches on Model 6's and 4's and were also used on the boost systems and other electronics used by Jackson/Charvel guitars.Just for your info, double pole switches were also used in the Model 4's and 6's, it just depends on the year of production. They still wire up the same way, the double pole just gives more options.

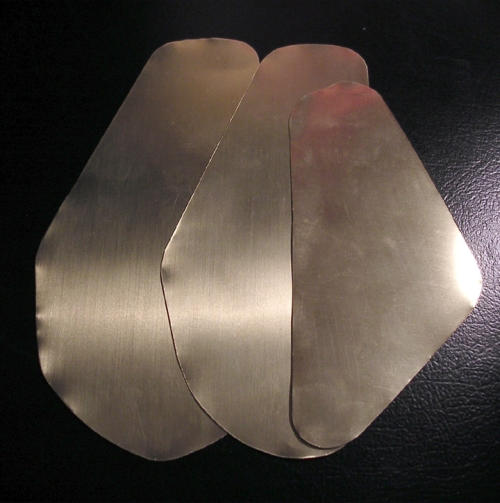

Solid Brass Grounding PlatesSo far, these are available for all Model Series Charvels, Usa Ontario Cavities (3 & 4 hole), Original Dimas Cavity and King V cavities.(I don't have the smaller triangle cavity used in the 90's and some soloists as of yet.)

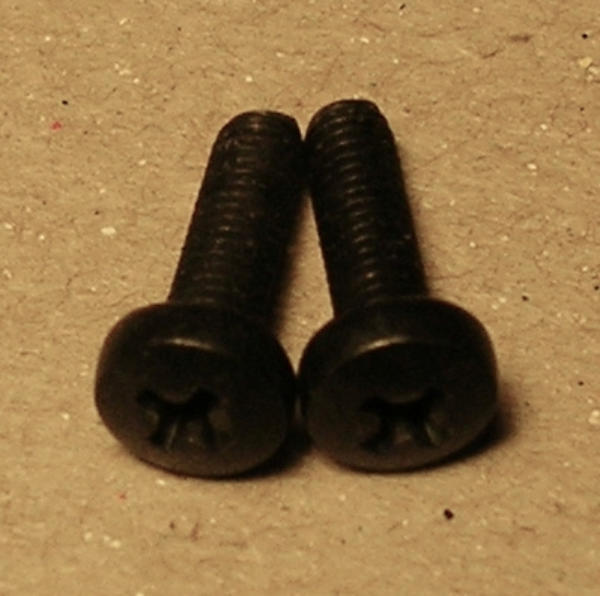

Replacement Screws for the Jackson/ Charvel “Special” 5- Way SwitchComes as a set of 2
$1.00 per set of 2HWSsw-1

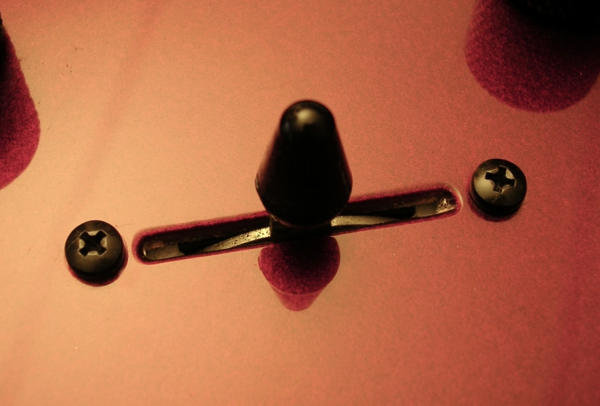

Replacement Screws for the Charvel Plastic 3- Way SwitchAs found on the Model 7 and Legend Tele style.Comes as a set of 2
$1.00 per set of 2

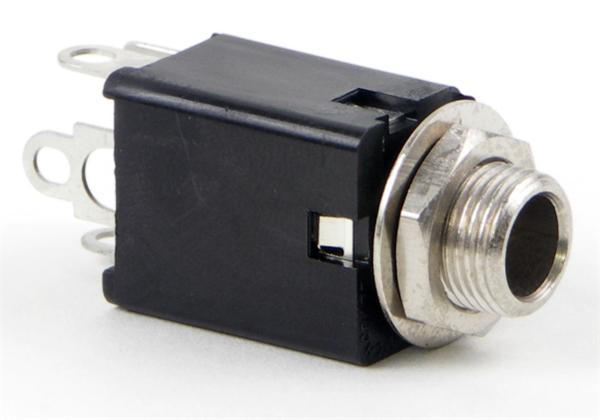

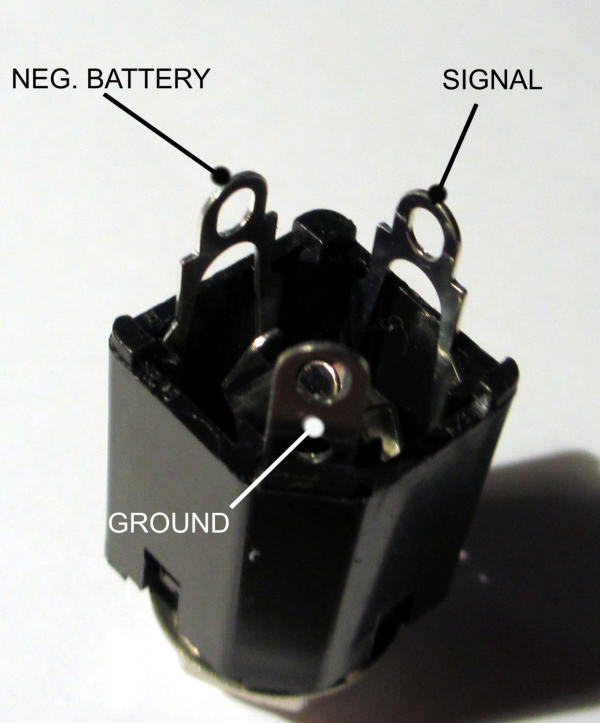

Switching Output JacksThese are used in countless guitars and are used as a typical output jack, with the ability to remove power,when the cord/plug is removed from the output jack.

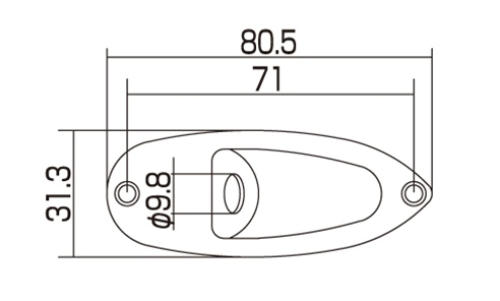

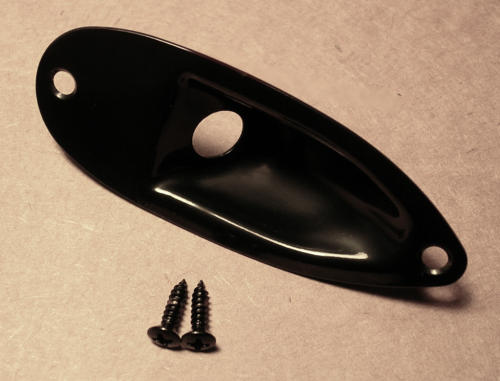

GOTOH Output JackPlatesThese are used in many guitars and fit Fender Stratocasters to Jackson Rhoads.
$17.50eachChrome OnlyHWSWCR-1Unavailable at the Moment

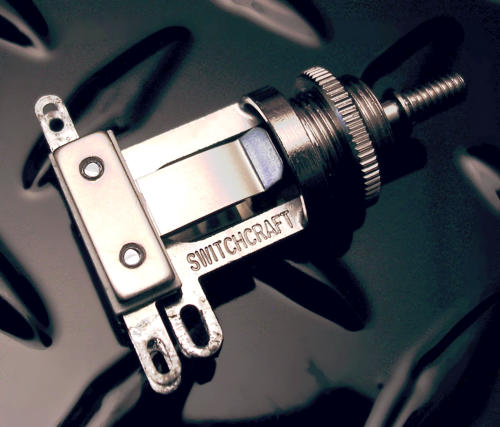

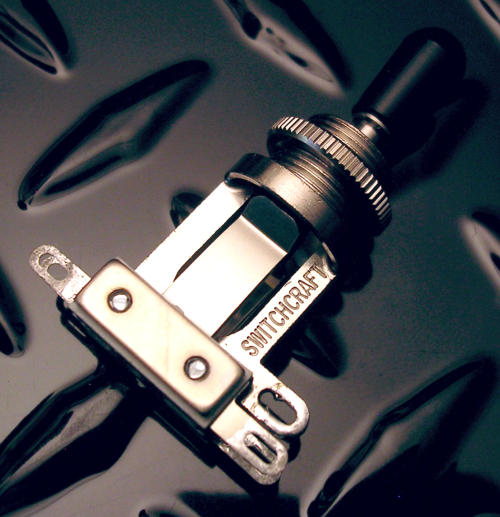

SwitchCraft 3-Way Switch (without tip)These are original pre-tinned SwitchCraft Short switches for most guitars and have an 8-32 thread.I was asked to carry these sincesome of you have trouble finding them.
$18.50eachChrome OnlyHWSWCR-1TUnavailable at the Moment
SwitchCraft 3-Way Switch (with Black Plastic tip)These are original pre-tinned SwitchCraft Short switches for most guitars and have an 8-32 thread.I was asked to carry these sincesome of you have trouble finding them.

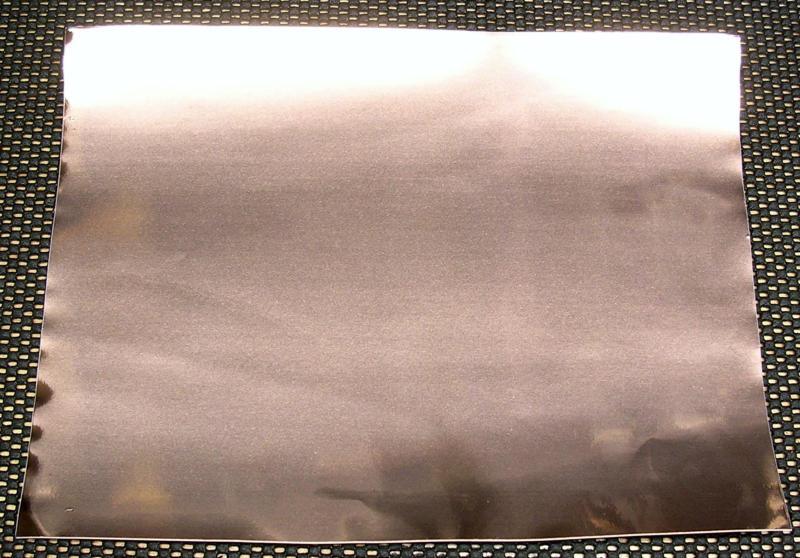

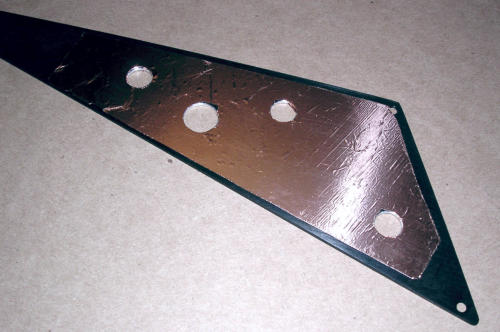

Solid Copper Adhesive Grounding SheetThese are 8-3/4 Width x 11-3/4” Length and have a white release paper on the back that you peel to expose the adhesive side.
