EMG 707 To Passive Conversion "IR" Rings
Please email me first before buying so that we can make sure this will fit correctly on your
particular guitar.
These rings are really aimed at the "do-it-yourselfer" as they're not just drop in and install" type
jobs. All 7 string pickups are not the same and the height screw holes on my rings are inside the
EMG routes and most pickups are not. This means, in most cases, that YOU must modify the
tabs for the height screws to fit inside the EMG pickup route, and let me know where they’re
located. This includes cutting the tips of the tabs, and possibly bending them in towards the
pickup to fit the route properly.

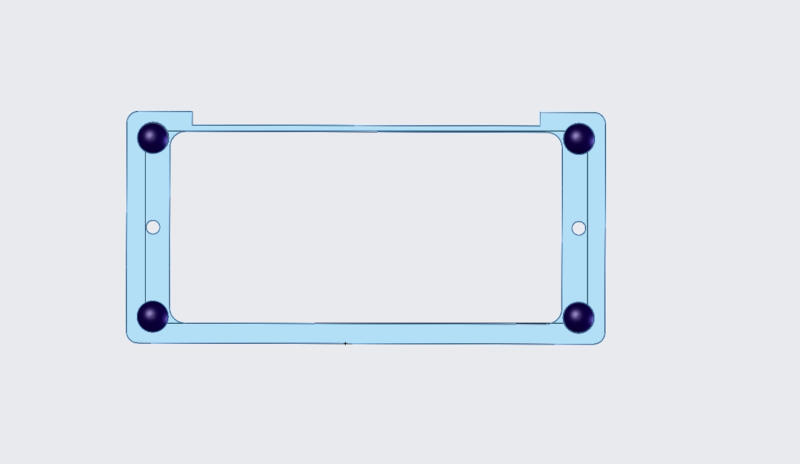

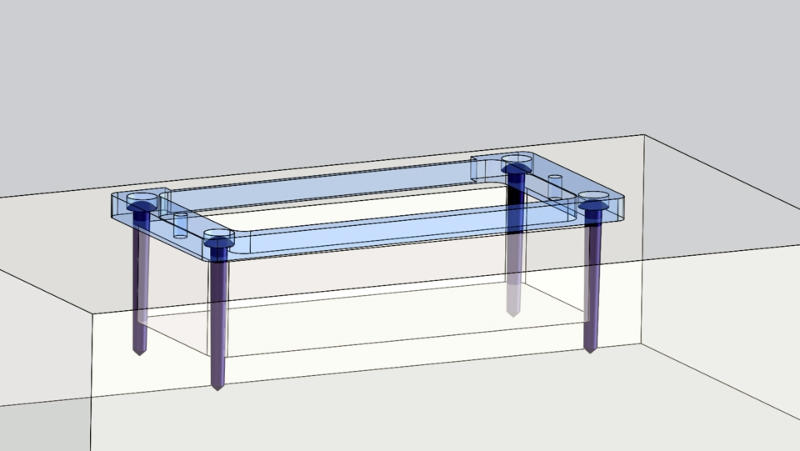

A visual reference for how these get installed into the existing pickup route:

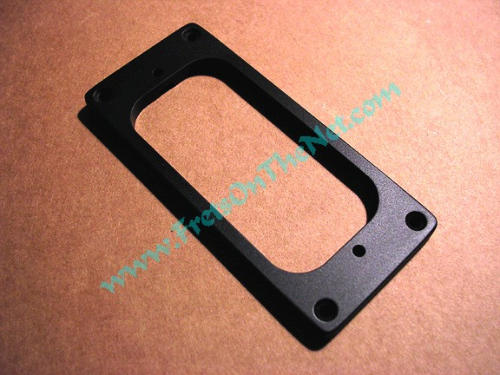

These 3/16th" (5mm) thick rings allow the installer to use the inside of the route to mount the
rings. Therefore keeping the guitar looking original if you choose to go back to the original style
pickups.
These can be made to a thinner thickness, but the screws will not be counter-bored, they will sit
on top of the ring surface. I also don't recommend plastic any thinner than the 3/16ths (5mm)
thickness for strength. Please inquire.
These are designed to be used with the "direct mount" pickup screws on my hardware page.
(HWsc-12)(not included in price)
If you need the neck cutout clearance for the fretboard, that is an additional $3.00 for THAT ring
only.
1 Pair of rings, in the black anodized brushed aluminum, with the neck ring cutout clearance for
the fretboard, is a total of $53.00 for the pair.
If you do not need the cutout clearance, the pair would be $50.00
*NOTE-The customer will have to supply some way to keep the surface from being scuffed from
the ring as I will not be responsible for damage to the customers guitar. Also, it's also up to the
customer to bend in the little tabs of the pickup rings in order to fit them into the route and line
them up to the finished "IR" rings. Or, it's even possible to drill new holes and tap them if you're
handy.
Black Plastic
Available in Satin or Brushed!
Price below reflects Up to 3/16th” flat thickness
(pricing increases per thickness)
$17.00 Each Ring
Black Anodized Aluminum
Available in Satin, or Brushed!
Price below reflects Up to 3/16th” flat thickness
(pricing increases per thickness)
$25.00 Each Ring
Aircraft Uncleared Aluminum
Available in Satin, Polished or Brushed!
Price below reflects Up to 3/16th”flat thickness
(pricing increases per thickness)
$22.00 Each Ring
Solid Uncleared Brass
Available in Satin, Polished or Brushed!
Price below reflects Up to 3/16th” flat thickness
(pricing increases per thickness)
$25.00 Each Ring
EMG 808 To Passive Conversion "IR" Rings
Please email me first before buying so that we can make sure this will fit correctly on your
particular guitar.
These rings are really aimed at the "do-it-yourselfer" as they're not just drop in and install" type
jobs. All 8 string pickups are not the same and the height screw holes on my rings are inside the
EMG routes and most pickups are not. This means, in most cases, that YOU must modify the
tabs for the height screws to fit inside the EMG pickup route, and let me know where they’re
located.This includes cutting the tips of the tabs, and possibly bending them in towards the
pickup to fit the route properly.

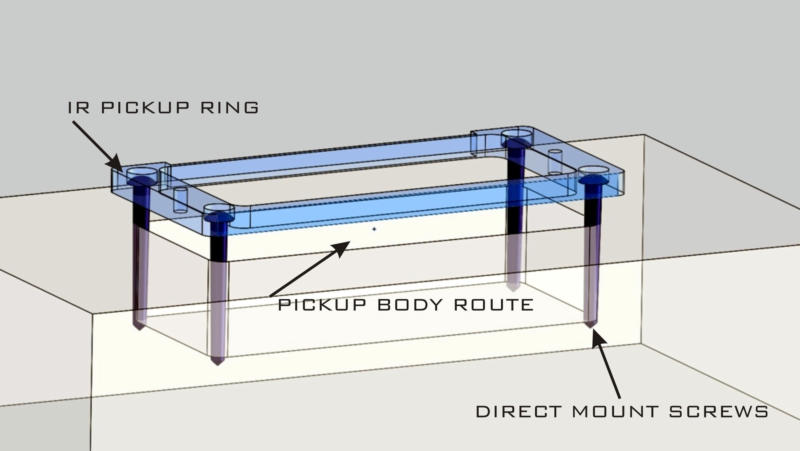

A visual reference for how these get installed into the existing pickup route:
These 3/16th" (5mm) thick rings allow the installer to use the inside of the route to mount the
rings. Therefore keeping the guitar looking original if you choose to go back to the original style
pickups.
These can be made to a thinner thickness, but the screws will not be counter-bored, they will sit
on top of the ring surface. I also don't recommend plastic any thinner than the 3/16ths (5mm)
thickness for strength. Please inquire.
These are designed to be used with the "direct mount" pickup screws on my hardware page.
(HWsc-12)(not included in price)
A note about BareKnuckle 8 String Pickups. They only have non-threaded holes as stock. I can
make clearance slots or holes for screwdriver access for the direct mount height adjustment
screws, or no holes at all, but you must tell me what you’d like, ok?
If you need the neck cutout clearance for the fretboard, that is an additional $3.00 for THAT ring
only.
1 Pair of rings, in the black anodized brushed aluminum, with the neck ring cutout clearance for
the fretboard, is a total of $53.00 for the pair.
If you do not need the cutout clearance, the pair would be $50.00
*NOTE-The customer will have to supply some way to keep the surface from being scuffed from
the ring as I will not be responsible for damage to the customers guitar. Also, it's also up to the
customer to bend in the little tabs of the pickup rings in order to fit them into the route and line
them up to the finished "IR" rings. Or, it's even possible to drill new holes and tap them if you're
handy.
Black Plastic
Available in Satin or Brushed!
Price below reflects Up to 3/16th” flat thickness
(pricing increases per thickness)
$17.00 Each Ring
Black Anodized Aluminum
Available in Satin, or Brushed!
Price below reflects Up to 3/16th” flat thickness
(pricing increases per thickness)
$25.00 Each Ring
Aircraft Uncleared Aluminum
Available in Satin, Polished or Brushed!
Price below reflects Up to 3/16th” flat thickness
(pricing increases per thickness)
$22.00 Each Ring
Solid Uncleared Brass
Available in Satin, Polished or Brushed!
Price below reflects Up to 3/16th” flat thickness
(pricing increases per thickness)
$25.00 Each Ring
These are designed to be used with the "direct mount" pickup
screws on my hardware page.
(HWsc-12)(not included in price)
If you need the neck cutout clearance for the fretboard,
that is an additional $3.00 for THAT ring only.
These are also available with height screw slots instead
of holes for direct mounted pickups.

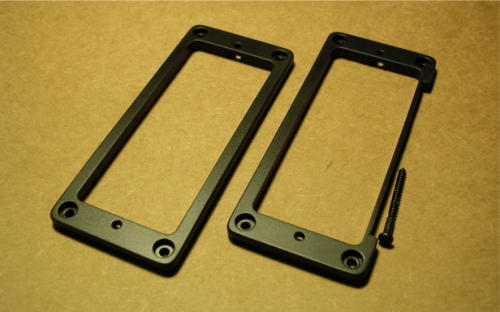

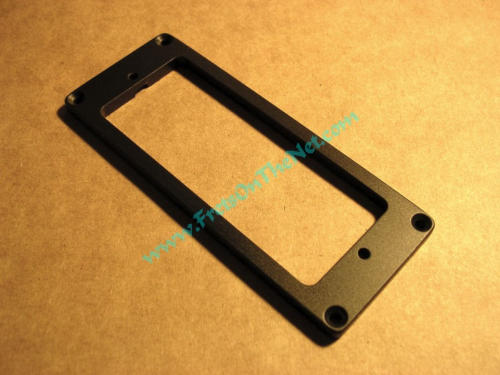

1/8th” rings to the right have the slot cutouts for direct mount
screw installation. Note, these are 1/8th” thick, and that is
the reason for no mounting screw counterbores.

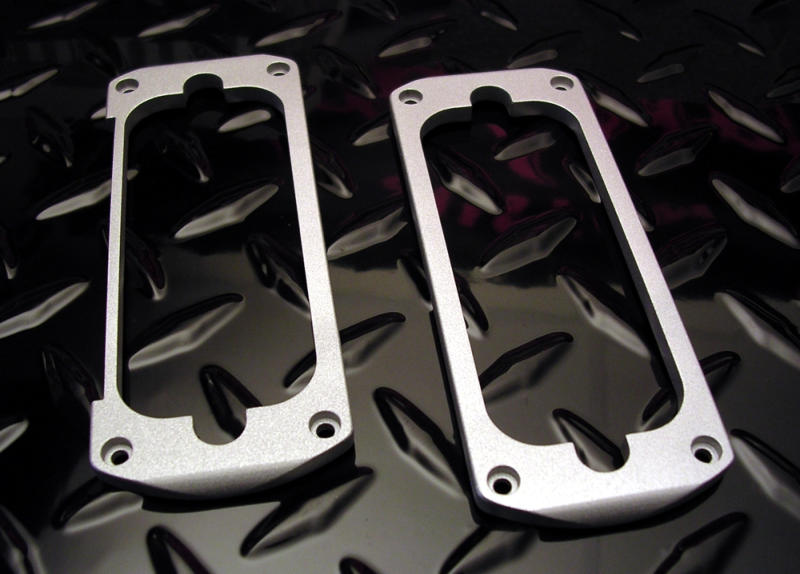

EMG707 to Passive Conversion Rings
Please email me first before buying so that we can make sure this will fit correctly on your
particular guitar. These conversions will allow the player to remove their 707 size EMG
soap bar type pickups and install a passive pickup into the ring and then install the ring
to the body.
Standard thickness is a flat 3/16ths thick.
If you need the neck cutout clearance for the fretboard,
that is an additional $3.00 for THAT ring only.
Aircraft Uncleared Aluminum
Available in Satin, Polished or Brushed!
Price below reflects Up to 3/16th” flat thickness
(pricing increases per thickness)
$22 Each Ring
Solid Uncleared Brass
Available in Satin, Polished or Brushed!
Price below reflects Up to 3/16th” flat thickness
(pricing increases per thickness)
$25 Each Ring
Black Plastic
Available in Satin or Brushed!
Price below reflects Up to 3/16th” flat thickness
(pricing increases per thickness)
$17.00 Each Ring
Black Anodized Aluminum
Available in Satin, or Brushed!
Price below reflects Up to 3/16th” flat thickness
(pricing increases per thickness)
$25.00 Each Ring
Aircraft Uncleared Aluminum
Available in Satin, Polished or Brushed!
Price below reflects Up to 3/16th” flat thickness
(pricing increases per thickness)
$22 Each Ring
Solid Uncleared Brass
Available in Satin, Polished or Brushed!
Price below reflects Up to 3/16th” flat thickness
(pricing increases per thickness)
$25 Each Ring
Black Plastic
Available in Satin or Brushed!
Price below reflects Up to 3/16th” flat thickness
(pricing increases per thickness)
$17.00 Each Ring
Black Anodized Aluminum
Available in Satin, or Brushed!
Price below reflects Up to 3/16th” flat thickness
(pricing increases per thickness)
$25.00 Each Ring
EMG808 to Passive Conversion Rings
Please email me first before buying so that we can make sure this will fit correctly on your
particular guitar.
These conversions will allow the player to remove their 808 size EMG soap bar type pickups
and install a passive pickup into the ring and then install the ring to the body.
Standard thickness is a flat 3/16ths thick
If you need the neck cutout clearance for the fretboard, that is an additional $3.00 for THAT ring
only.

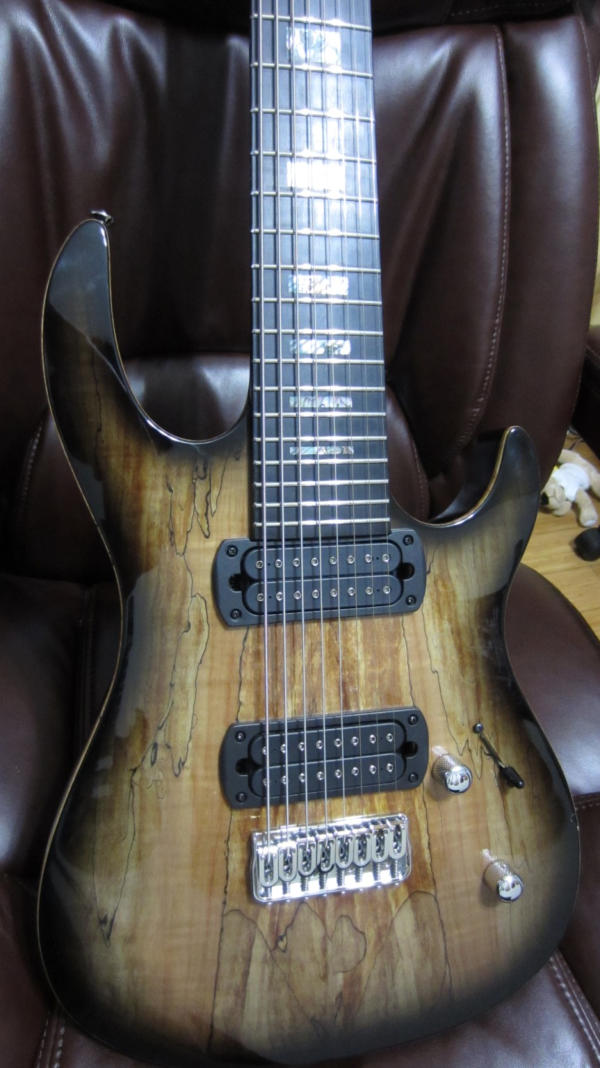

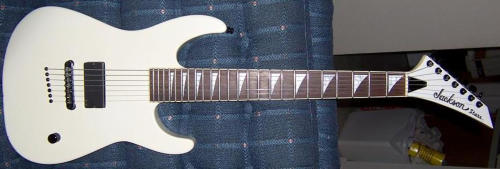

Before:

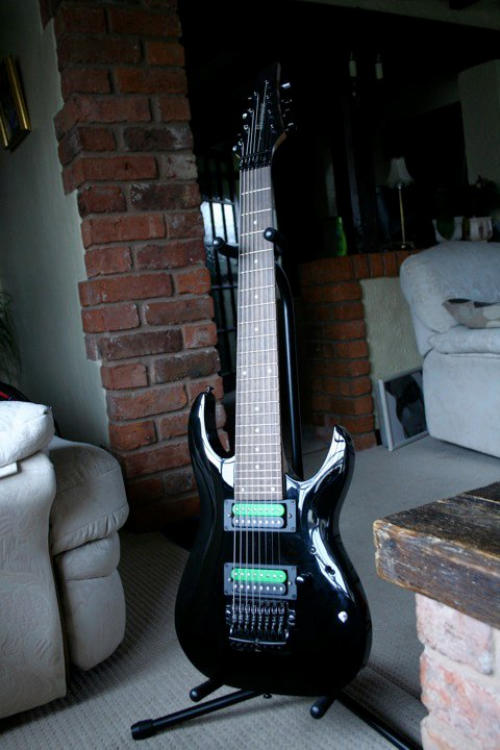

After:
(Carvin DC800 pickup rings shown
with rounded ends are extra)
These are designed to be used with the "direct mount" pickup
screws on my hardware page.
(HWsc-12)(not included in price)
If you need the neck cutout clearance for the fretboard,
that is an additional $3.00 for THAT ring only.
These are also available with height screw slots instead
of holes for direct mounted pickups.
1/8th” rings to the right have the slot cutouts for direct mount
screw installation. Note, these are 1/8th” thick, and that is
the reason for no mounting screw counterbores.
(pickup rings shown with rounded ends are extra)
